24V 20Ah Lithium-ion Battery (Blue PVC Wrap)
- Home delivery all over the country.
- Quality Product
- Cash On Delivery Available
- Delivery Charge Inside Dhaka 70 TK
- Delivery Charge Outside Dhaka 120 TK
Have question about this product ? please call
Delivery Charge

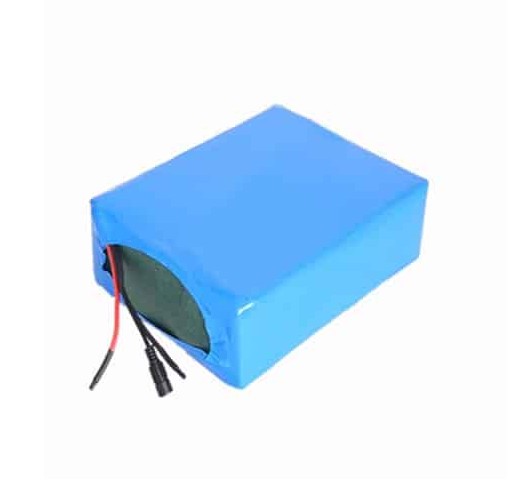

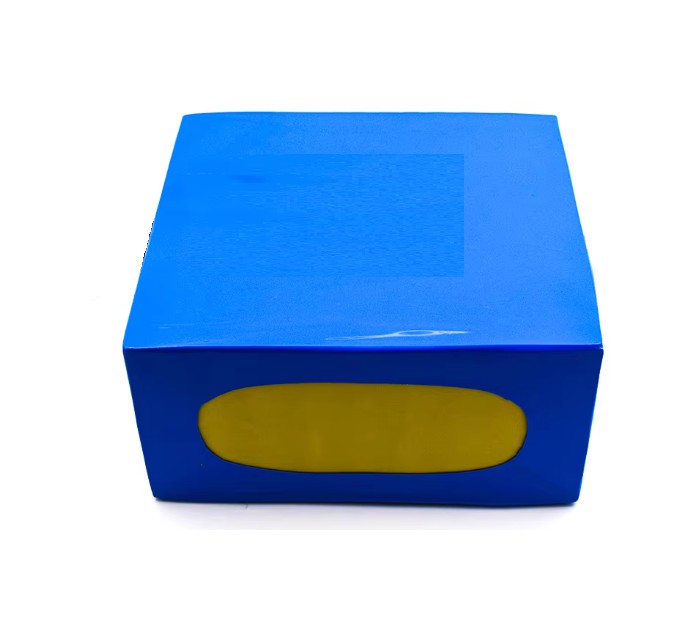

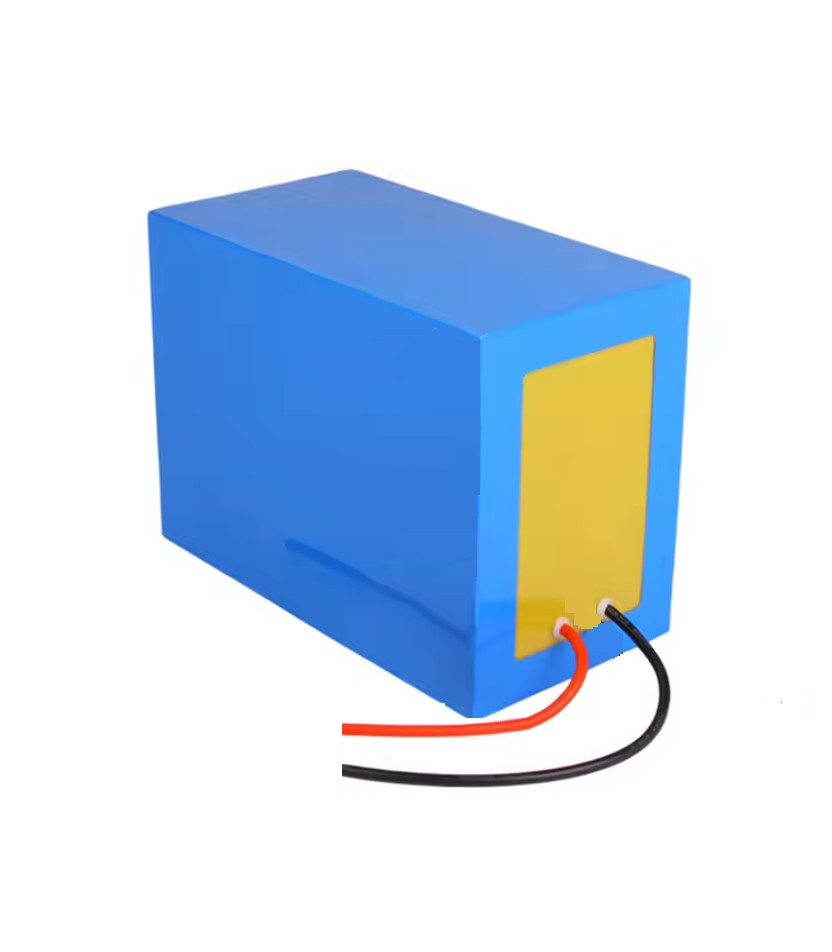

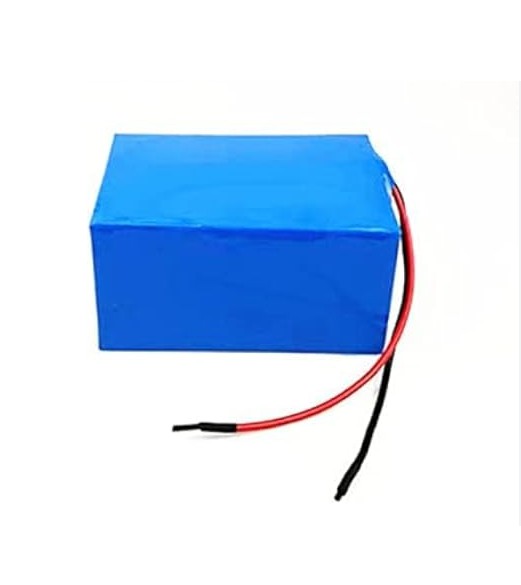

This 24V 20Ah Lithium-ion Battery is a versatile and compact power solution specifically designed for electric bicycles (e-bikes), electric wheelchairs, and solar energy storage. Encased in a durable, high-density blue PVC heat-shrink wrap, this battery pack is built using Grade-A 18650 Li-ion cells to ensure consistent performance and a long service life of over 1000 charge cycles. The pack features a sophisticated integrated Battery Management System (BMS) that protects the cells from overcharging, deep discharging, short circuits, and thermal runaway. Its lightweight and space-saving design makes it an ideal "drop-in" replacement for bulky lead-acid batteries, offering nearly triple the energy density and a significantly faster charging time.
Specification
Product Model : LIB-2420-PVC
Nominal Voltage : 24V (25.9V / 29.4V Peak)
Rated Capacity : 20Ah (20,000mAh)
Energy Content : 480Wh – 512Wh
Cell Type : High-quality 18650 Lithium-ion Cells
Cycle Life : 1,000+ Cycles (at 80% Depth of Discharge)
Charging Voltage : 29.4V
Max Charge Current : 5A
Continuous Discharge Current : 20A (Supports motors up to 500W)
Peak Discharge Current : 40A
Outer Protection : Blue PVC Heat Shrink Wrap
Weight : Approximately 2.5 kg – 3.0 kg
Connectors : T-Plug / XT60 / XT90 (Customizable)
