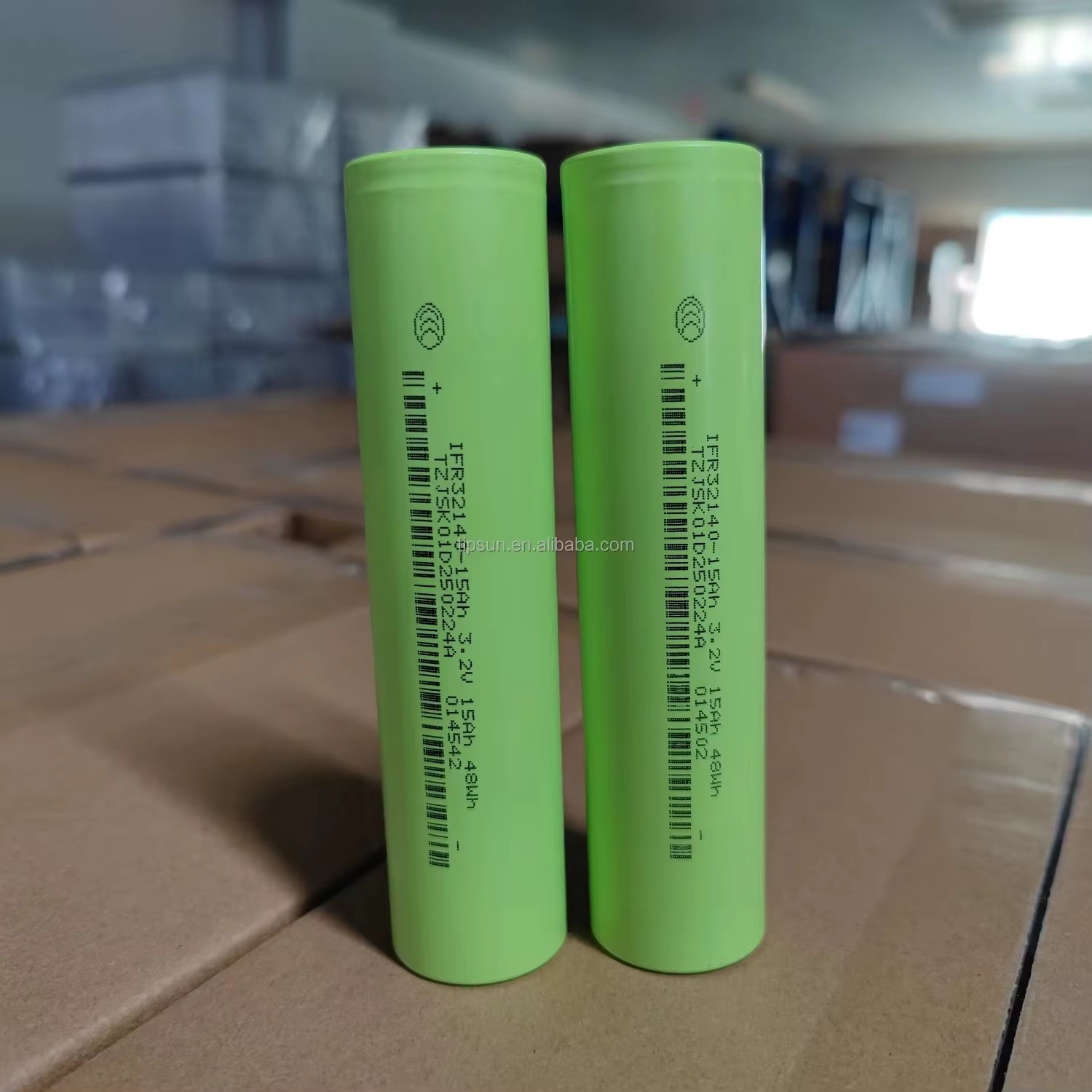

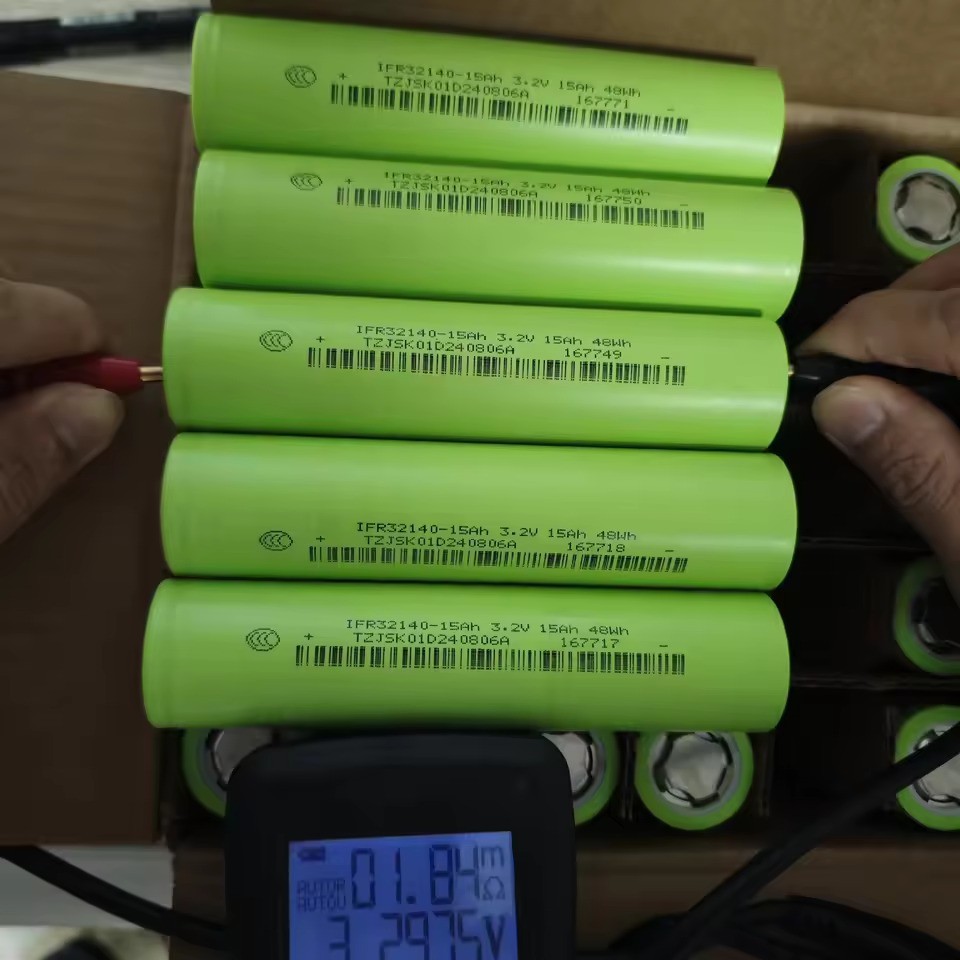

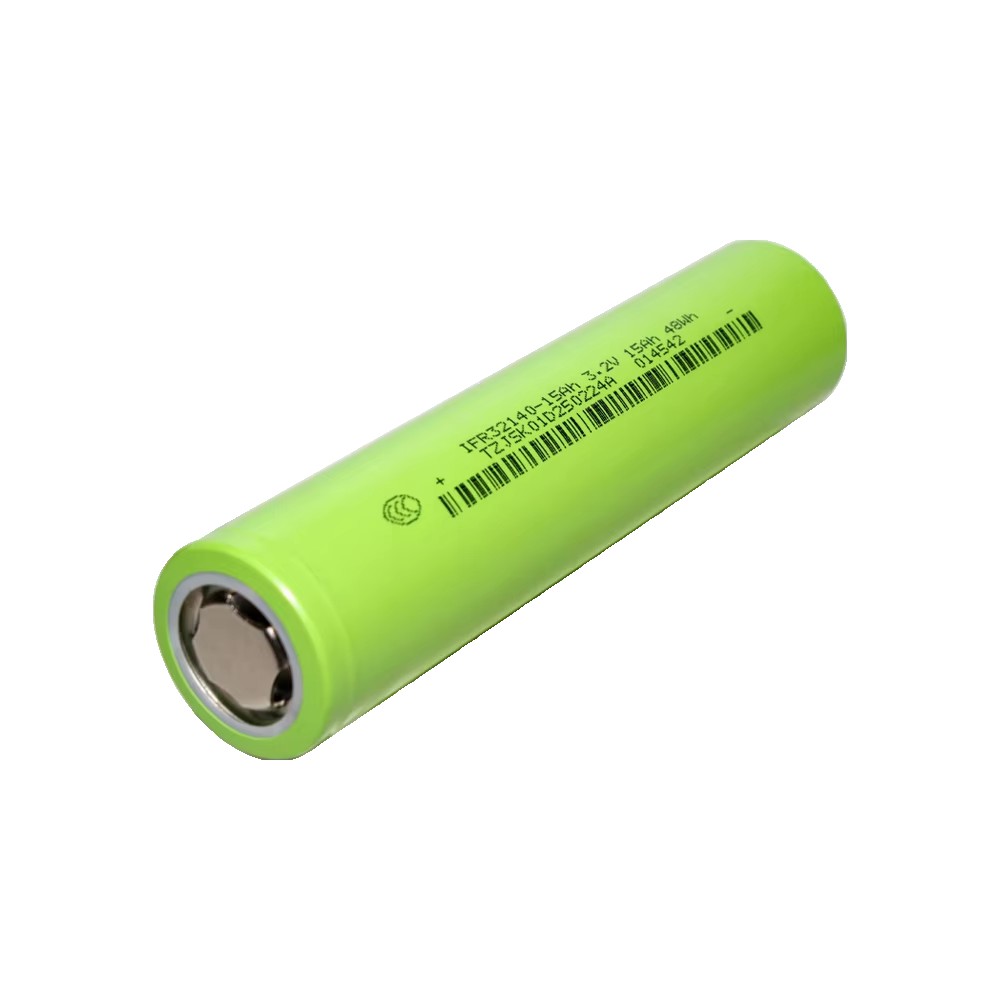

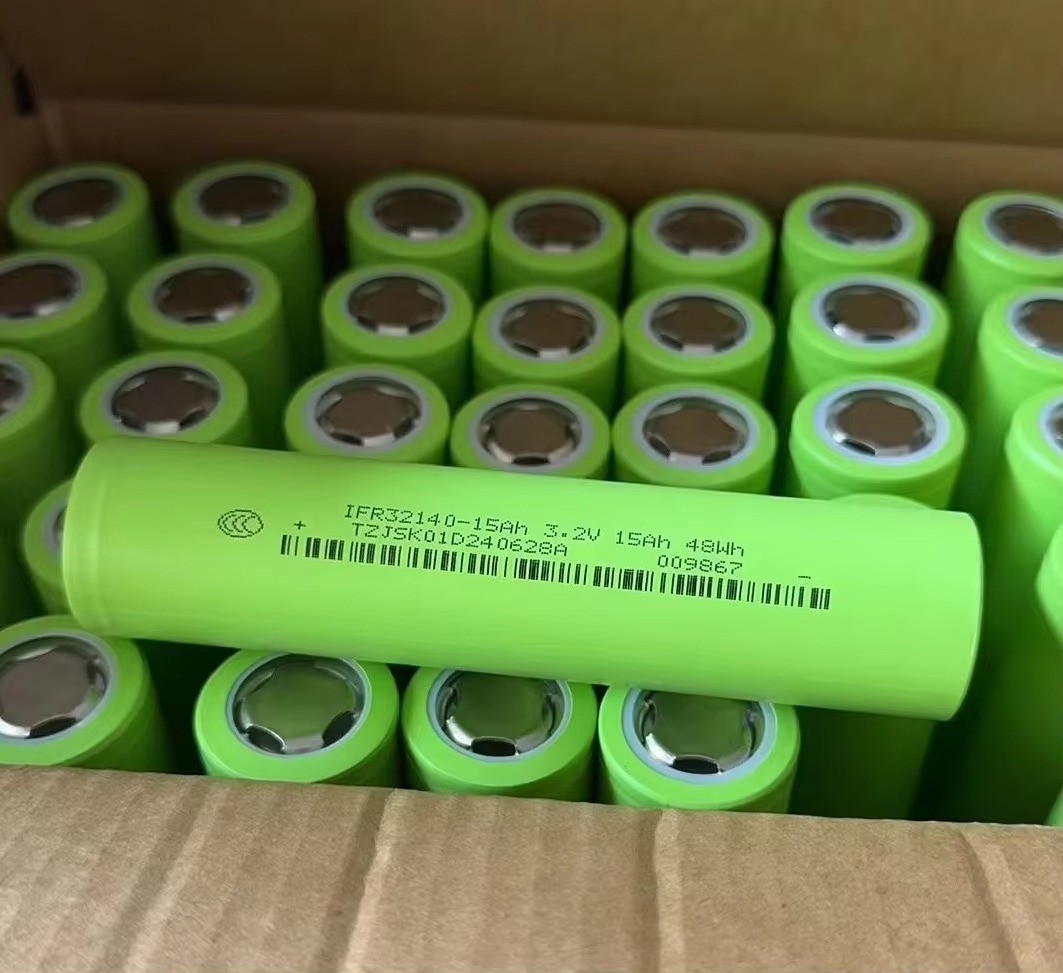

JSK 32140 / 33140 LiFePO4 3.2V 15Ah Battery Cell
- Home delivery all over the country.
- Quality Product
- Cash On Delivery Available
- Delivery Charge Inside Dhaka 70 TK
- Delivery Charge Outside Dhaka 120 TK
Have question about this product ? please call
Delivery Charge
The JSK IFR32140 is an A-grade Lithium Iron Phosphate (LiFePO4) cylindrical cell designed for high-capacity and high-cycle-life applications. Its compact 32mm x 140mm format makes it a popular choice for building modular battery packs for electric vehicles (EVs), e-bikes, and energy storage systems (ESS). Compared to standard Lithium-ion, the LiFePO4 chemistry is inherently safer, non-flammable, and offers a significantly longer lifespan.
Specifications
Chemistry: Lithium Iron Phosphate (LiFePO4/LFP)
Model: JSK-32140 (Cylindrical)
Nominal Voltage: 3.2V
Nominal Capacity: 15Ah (15,000mAh)
Energy Content: 48Wh per cell
Cycle Life: 2,000 to 3,500+ cycles (at 80% DOD)
Maximum Continuous Discharge: 30A – 45A (3C)
Peak Discharge Current (Pulse): 60A – 75A (5C)
Charge Voltage: 3.65V (Max)
Discharge Cut-off Voltage: 2.0V – 2.5V
Dimensions: Diameter: 32mm | Height: 140mm
Weight: Approximately 300g – 450g per cell
